Overview
This Construction Brief will give you an overview of Verisk 's Construction Class 5 – modified fire-resistive construction. When you've completed this course, you will know what a Verisk report means when it says a building is modified fire-resistive construction. And you'll understand why a particular structure is—or isn't—modified fire-resistive.

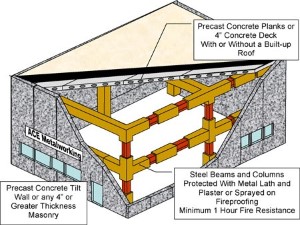

Definition
- Buildings with exterior walls, floors, and roofs of masonry materials described in the definition of fire-resistive (Construction Class 6)—less thick than required for fire-resistive structures but not less than four inches thick, or
- Fire-resistive materials with a fire-resistance rating less than two hours but not less than one hour

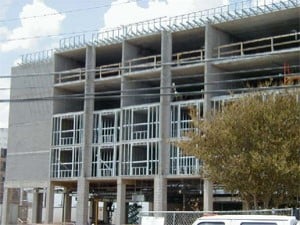

Exterior walls
The exterior bearing walls and load-bearing portions of exterior walls must be of noncombustible
materials or of masonry, but exterior nonbearing walls and wall panels may be slow-burning, combustible, or with no fire-resistance rating.
Structural steel protection
Modified fire-resistive buildings also include structural steel protection techniques—fire-protection material applied to steel.
Materials Include
- Concrete
- Plaster
- Clay tile
- Brick or other masonry units
- Gypsum block
- Gypsum wallboard
- Mastic coatings
- Mineral and fiberboard
- Mineral wool

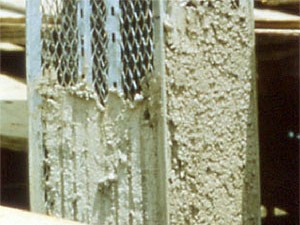

Metal lath and plaster

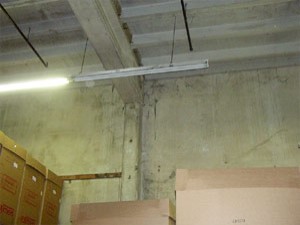

Examples of metal lath and plaster applied to steel:

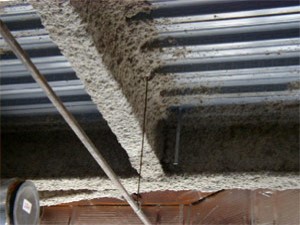

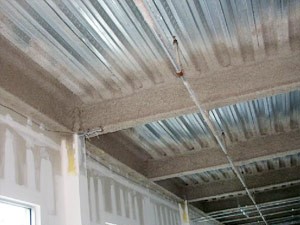

Example of gypsum board applied to steel columns and sprayed-on materials applied to the steel beams:
Ceilings protecting steel beams or joists
What happens when there is no fire-protection material applied to steel beams or joists that support floors or roofs? Verisk still considers a building modified fire resistive if it has a suitable ceiling.
Ceilings can be plaster or gypsum wallboard or suspended mineral tile.
The entire floor-ceiling (a fire-resistive ceiling protecting a floor) or roof-ceiling (a fire-resistive ceiling protecting roof supports) should conform to construction details in a UL-Listed or Factory Mutual (FM)-approved design. Verisk individually evaluates each approved design.

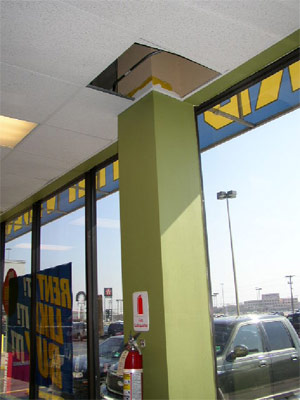

The drop ceiling is the fire protection for the column
One-hour UL-listed assembly concrete on steel deck

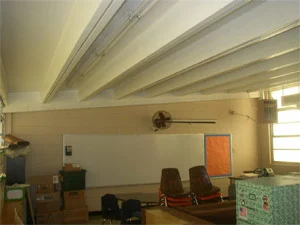

Advantages of fire-resistive construction
- Uses noncombustible materials
- Allows greater height and area than other construction classes
- Uses load-bearing members or assemblies that resist damage from fire

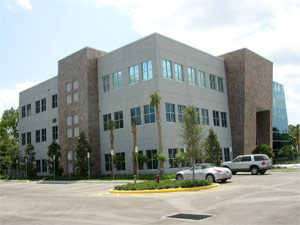

Disadvantages of modified fire-resistive construction
